Thermal optics that match the task
The 40 mm-equivalent thermal lens provides a 61° diagonal field of view. It shows more surrounding thermal context than the narrower Mavic 3T Advanced lens; select the view around the target and working distance.
Drones & Platforms
DJI Mavic 3 Thermal
Portable radiometric thermal imaging with wide and telephoto views for field inspection.
Image coming soon
- 640 × 512 native
- Radiometric thermal detector
- 61° thermal view
- Diagonal field of view
- Wide + telephoto
- Visible context and detail
Product information
Choose the right package.
Review the cameras, supported equipment and field requirements below. Our team can confirm the package and purchase options for this model.
Compare current platforms
DJI Matrice 4TPortable thermal and zoom imaging for search, response and inspection.$6,969.99View product
DJI Matrice 4TDThermal and visual imaging for repeatable inspection and response missions.$9,800.00View productCompatible equipment: DJI Mavic 3 Enterprise Series Battery Kit
Drones & Platforms
Thermal findings with visible context.
Mavic 3 Thermal, also called Mavic 3T, brings a native 640 × 512 radiometric thermal camera together with wide and telephoto visible cameras. Use thermal imagery to locate a difference, then record the visible asset and surrounding context so another team member can identify and assess the finding.
In practice
What you can capture
Retain both thermal and visible records
Spot and area measurement functions help examine the thermal image. Emissivity, reflections, distance, weather and camera settings affect temperature interpretation; retain the radiometric original and a visible context image for specialist review.
A folding aircraft for mobile crews
The aircraft uses DJI RC Pro Enterprise and the Mavic 3 Enterprise power family. An optional RTK module can support position records, while an optional speaker provides a different use of the same accessory port.
Where it fits
Applications
Electrical & industrial inspection
Record matched thermal and visible observations of equipment for a qualified asset reviewer.
Search & rescue
Locate a candidate thermal signature and obtain visible context for ground-team verification.
Fire follow-up
Document heat patterns after an incident; a thermal image alone does not establish that an area is safe.
Fit & requirements
Compatibility
Use the Mavic 3 Enterprise power and accessory family. DJI RC Pro Enterprise is the supported controller family. An optional RTK module and the speaker use the same aircraft port and cannot be fitted together. Matrice 4 batteries, RC Plus 2 and Dock 3 are not compatible substitutes.

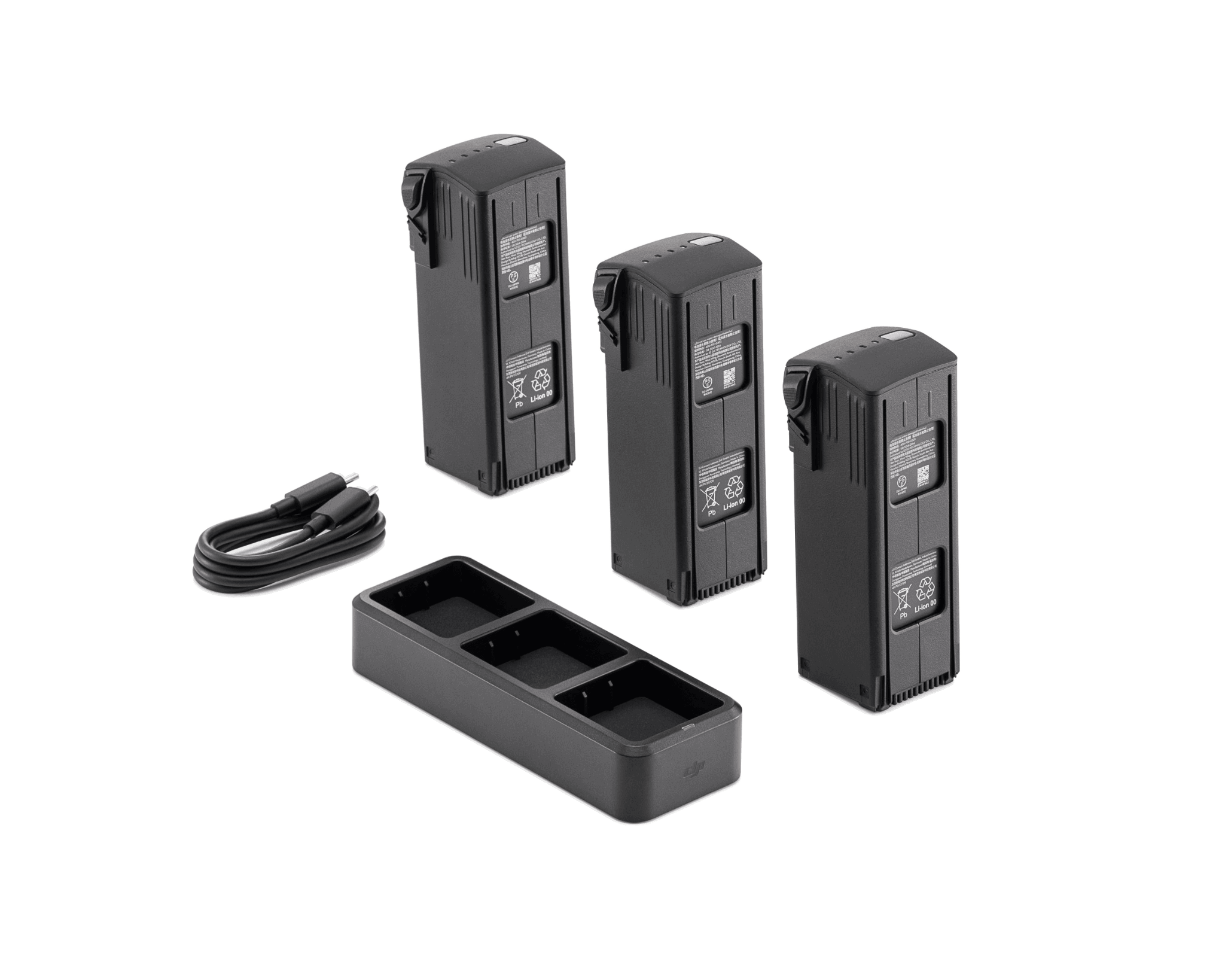

DJI Mavic 3 Enterprise Series Battery Kit
Three Intelligent Flight Batteries and a 100W charging hub for the Mavic 3 Enterprise battery family.
$587.00
Before you order
- An RTK module and a supported correction source are needed for RTK operation; do not assume an optional module is in the selected package.
- The photographs describe the model. Confirm the selected UAV Super package before ordering; regional power cables and propeller configurations can differ.
- The native thermal resolution is 640 × 512 on both Mavic 3T and Mavic 3T Advanced; magnified output does not add detector pixels.
Technical details
Specifications
Visible & thermal imaging
| Wide camera | 1/2-inch CMOS; 48 MP; 24 mm equivalent, f/2.8; electronic shutter |
|---|---|
| Telephoto camera | 12 MP; 1/2-inch CMOS; 162 mm equivalent, f/4.4 |
| Zoom | Up to 56× hybrid; includes digital magnification |
| Thermal detector | Uncooled VOx; native 640 × 512; 30 Hz |
| Thermal stills | R-JPEG; retain radiometric originals for review |
| Temperature ranges | High gain: -4 to 302°F (-20 to 150°C); low gain: 32 to 932°F (0 to 500°C) |
| Temperature accuracy | High gain: ±2°C or ±2%, whichever is greater, under the manufacturer’s test conditions |
| Thermal pixel pitch | 12 μm |
| Thermal field of view | 61° diagonal; 40 mm equivalent |
| Thermal measurement tools | Spot and area temperature measurement |
| Mechanical shutter | Not fitted to the wide camera; choose Mavic 3E for its mechanical-shutter mapping camera |
Aircraft & operation
| Standard takeoff weight | Approx. 920 g including battery, propellers and microSD card |
|---|---|
| Folded dimensions | 221 × 96.3 × 90.3 mm; propellers excluded |
| Maximum flight time | Up to 45 min with the standard battery and enterprise propellers: manufacturer test in no wind at sea level, about 32.4 km/h, until battery depletion. Working endurance is shorter. |
| Maximum wind resistance | 12 m/s at takeoff and landing; evaluate the actual conditions and mission |
| Transmission | DJI O3 Enterprise; up to 15 km FCC with an unobstructed, interference-free link; not an operating-radius promise |
| Controller family | DJI RC Pro Enterprise; not RC Plus 2 Enterprise Enhanced |
| Operating temperature | 14 to 104°F (-10 to 40°C) |
| Ingress rating | No waterproof rating; not intended for rain operation |
Positioning & accessories
| RTK | Optional DJI Mavic 3 Enterprise RTK Module |
|---|---|
| Shared accessory port | RTK module or speaker; not both together |
| Battery family | Mavic 3 Enterprise Series; not Matrice 4 |
Product downloads
Product questions
Before you buy
The Advanced model has a narrower 41.2° thermal field of view, 60 mm-equivalent thermal lens and 8 μm detector pitch. Mavic 3T has a 61° thermal field of view, 40 mm-equivalent lens and 12 μm pitch. Both have 640 × 512 native thermal resolution.
It can record visible photographs, but its wide camera has an electronic shutter. Choose the camera and capture method around the accuracy and movement demands of the project.
No. Dock 3 uses Matrice 4D Series aircraft; this model uses the RC Pro Enterprise controller family.
