Drones & Platforms
A modular RTK aircraft for thermal inspection, photography and LiDAR with the supported payload fitted.
Product information
Review the cameras, supported equipment and field requirements below. Our team can confirm the package and purchase options for this model.

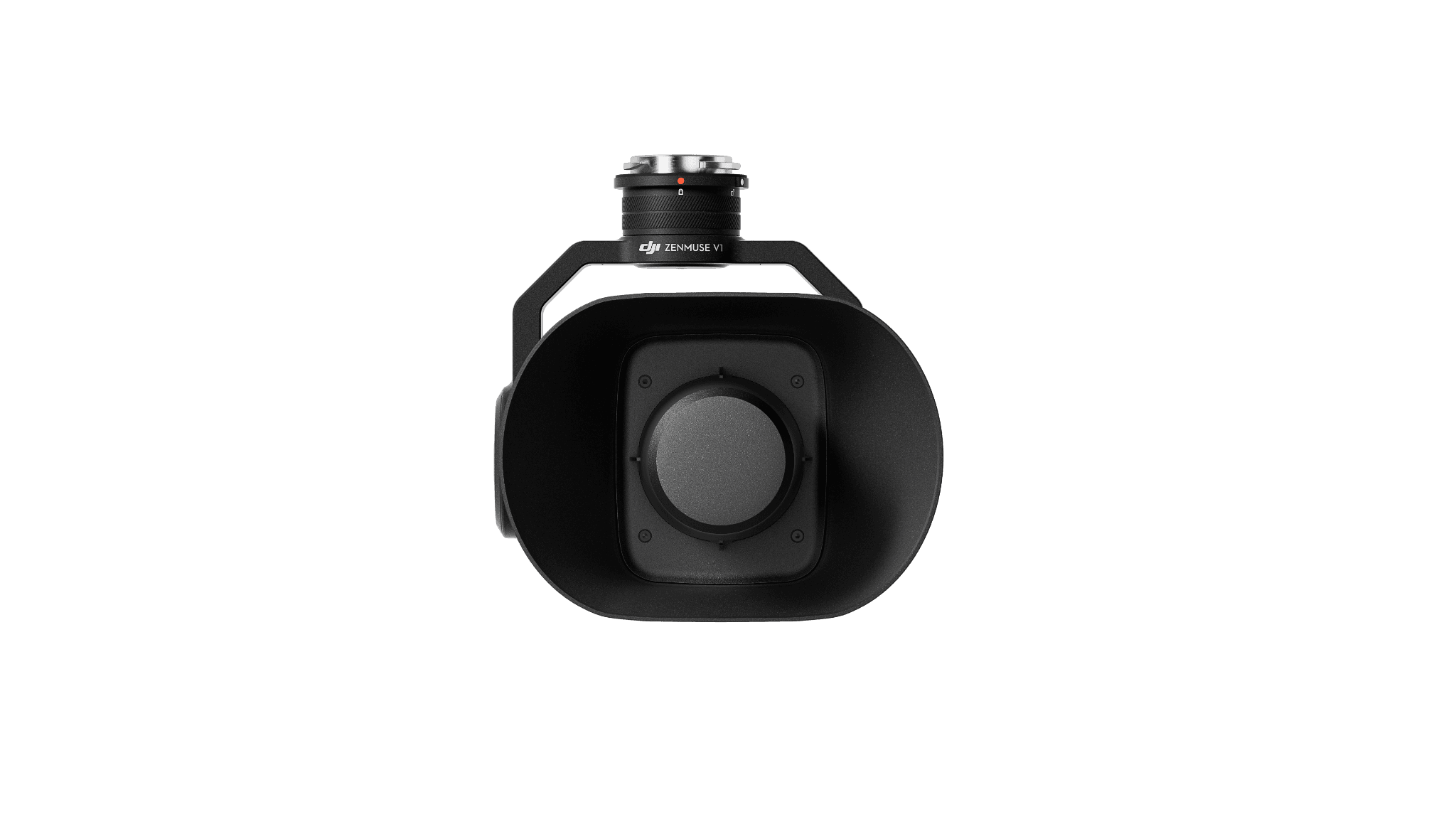

DJI Matrice 400A modular aircraft for thermal inspection, photographic mapping and LiDAR.$8,999.00View productCompatible equipment: DJI Zenmuse H30T · DJI Zenmuse P1 · Zenmuse S1 · Zenmuse V1
Matrice 350 RTK is an interchangeable-payload aircraft for crews that need more than an integrated compact camera. Fit H30T for thermal and visual inspection, P1 for high-resolution photography or L2 for LiDAR mapping. The aircraft uses the DJI RC Plus controller and a paired TB65 battery system; power equipment and the exact payload package must be matched to the selected system.
The supported payload list includes H30/H30T, P1, L2, S1 and V1. The gimbal position, total mass, power and flight conditions must match the combination; a broad payload list is not approval for every multi-payload arrangement.
The dual-battery system supports hot swapping and battery-health management with compatible charging equipment. Use matched battery models together. The manufacturer supports paired TB65 or paired TB60 batteries, but not one of each.
Single downward, dual downward and upward configurations serve different viewpoints. Mounting equipment, controller firmware, payload firmware and the individual gimbal limits all belong in the setup review.
Pair a supported thermal payload with a repeatable capture and asset-identification method.
Use L2 with an RTK and processing workflow for point-cloud deliverables.
Use P1 for overlapping nadir or oblique images around the required surface model.
Use the Matrice 350 / DJI RC Plus / paired TB65 power platform. L2, P1, H30/H30T, S1 and V1 are supported payload families with the correct connector and firmware. Do not substitute Matrice 400 TB100/BS100, RC Plus 2 or L3.
LiDAR and RGB mapping for existing fleets and supported Matrice aircraft.
A directional speaker delivers recorded and text-based messages from supported aircraft.
| Maximum flight time | Up to 55 min at approximately 8 m/s, no payload, no wind, until battery depletion; not working mission endurance |
|---|---|
| Maximum takeoff weight | 9.2 kg |
| Maximum wind resistance | 12 m/s; assess the actual aircraft configuration and conditions |
| Maximum horizontal speed | 23 m/s |
| Ingress rating | IP55; protection is not permanent and can diminish with wear |
| Operating temperature | -4 to 122°F (-20 to 50°C) |
| Battery system | Two TB65 Intelligent Flight Batteries; paired TB60 batteries also supported |
|---|---|
| Mixed battery models | Do not combine TB65 and TB60 in one pair |
| Charging equipment | BS65 Intelligent Battery Station; confirm selected order contents |
| Controller | DJI RC Plus; not RC Plus 2 Enterprise Enhanced |
| Transmission | DJI O3 Enterprise; up to 20 km FCC with an unobstructed, interference-free link |
| Supported store payloads | H30, H30T, P1, L2, S1 and V1, subject to the exact configuration and current firmware |
|---|---|
| Gimbal arrangements | Single downward, dual downward or single upward; up to three payloads with an appropriate configuration |
| Zenmuse L3 | Not a supported M350 payload; L3 requires Matrice 400 |
| TB100 / BS100 | Matrice 400 equipment; not the M350 power family |
No. Choose a supported L2 or P1 workflow for M350, or Matrice 400 for L3.
No. The aircraft supports a pair of the same battery model, not a mixed TB65/TB60 pair.
No. Matrice 350 RTK uses DJI RC Plus. Matrice 400 uses DJI RC Plus 2 Enterprise Enhanced.
